UHP (Ultra High Purity) Grade Oxygen, Size 200 High Pressure Steel Cylinder, CGA 540
Airgas Part #:OX UHP200
Manufacturer Part #:UHP200
Log in to get your price
Cylinder
Enter Delivery Zip Code or Log In
Cylinder contains approximately 251 Cubic Foot (FT3)
About this product
- Oxygen (O2) is a colorless, odorless, tasteless, highly oxidizing compressed gas. See the Oxygen pages under the Pure Gases Tab on the Menu of our Specialty Gas & Equipment Catalog for detailed gas purity and additional gas information.
Specifications
| GAS GRADE | % PURITY | H2O | THC | CO | CO2 | Ar | N2 | Kr |
|---|---|---|---|---|---|---|---|---|
| Ultra High Purity | 99.994 | 2 | 0.5 | 1 | 1 | 35 | 15 |
*Concentrations given are ppm by volume unless otherwise specified.
Product Attributes
CGA Connection
• CGA 540Gas Grade
• UHP
Features
- Airgas operates its own dedicated blending facilities as well as maintains a national network of blending technology to ensure accurate, consistent production.
- Individual or Batch Certificate of Analysis available upon request.
Applications
- Ultra High Purity (UHP) grade Oxygen is the most common grade for multiple gas applications in gas chromatography. Available with batch or individual COA upon request.
Safety
- Always use in accordance with the Safety Data Sheet (SDS)
- Cylinder must be stored and used in an upright, secured position in a well-ventilated or monitored area.
- For emergency use only by trained personnel for oxygen deficiency and resuscitation.
- Do not use high concentrations for more than five hours without one hour interruptions.
- For other medical uses, only use as directed by a licensed physician.
- Always follow local fire code requirements when storing gas cylinders.
- Major Hazards: Highly oxidizing, Supports vigorous combustion, High pressure, compressed gas
Specifications
Sizes may vary by location. Contact your local Airgas representative or local branch location for availability in your area.

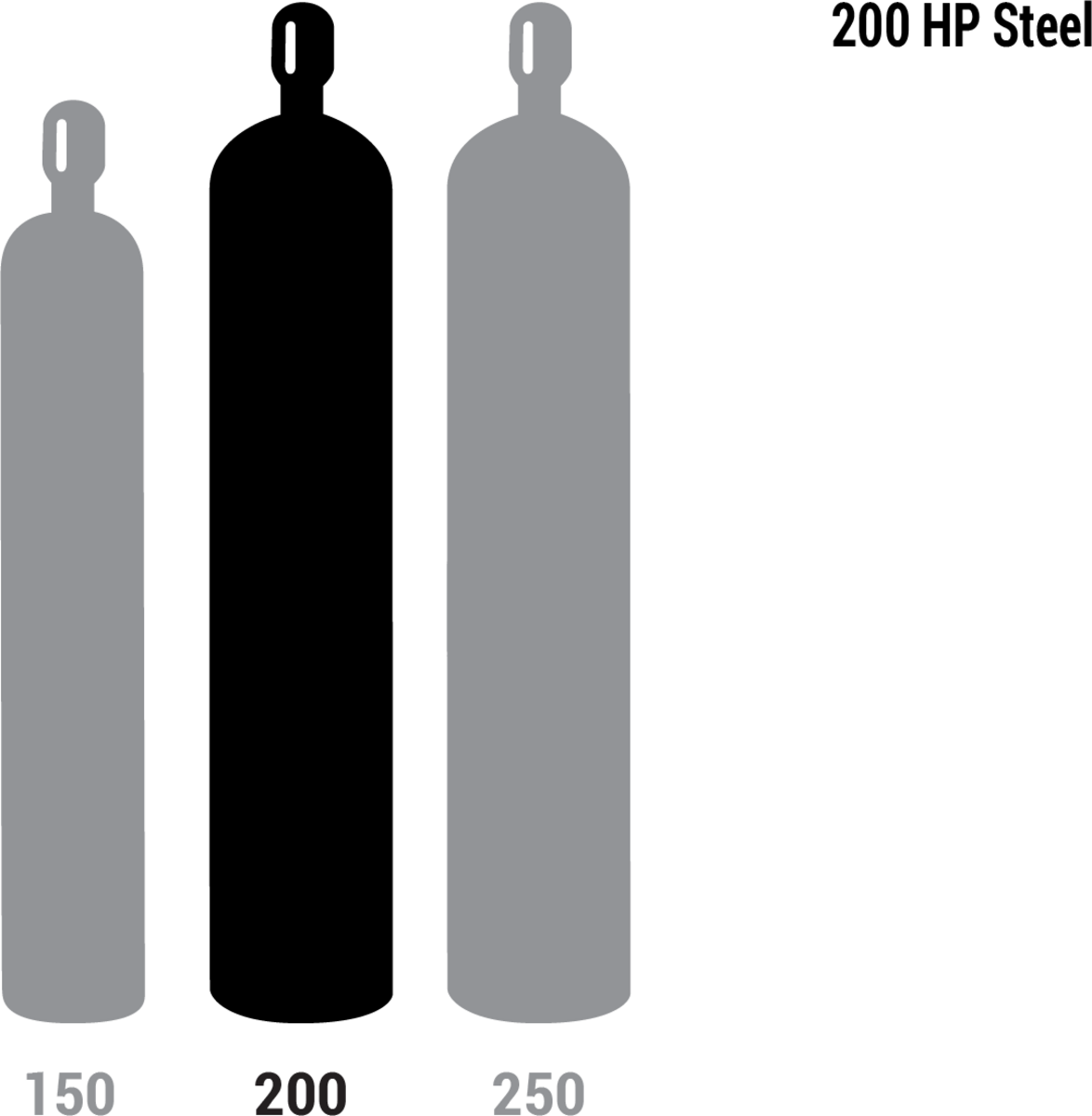

DIMENSIONS
Size
200 Steel HP
DOT Specification
3AA - 2015 - Canada 3AA - M154
O.D.
9" - 229 mm
Length
51" - 1295 mm
Weight
106 lbs - 48 kg
Airco/BOC
H
